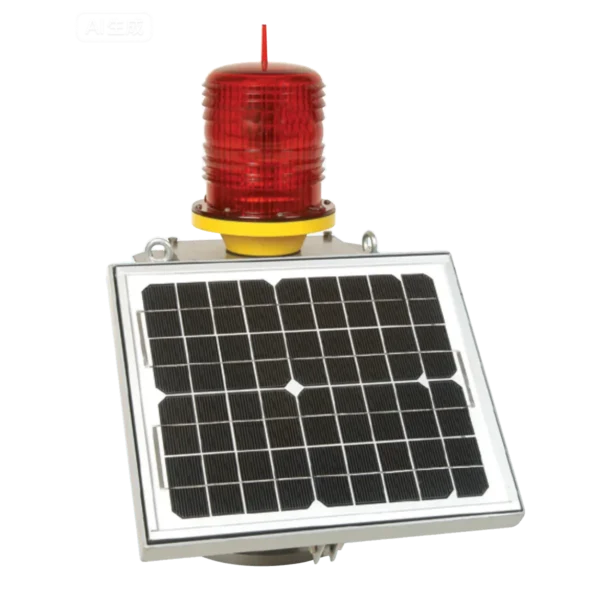

The TGZ-98LED is a low-energy, long-life, high-efficiency solar-powered aviation obstruction light. It features an aluminum alloy base and monocrystalline silicon solar panel. The lamp cover is made from imported, impact-resistant, anti-aging, high-strength polycarbonate material, forming a Fresnel red lens. The light source utilizes a proprietary design with constant-current optimized control circuitry, ensuring that voltage fluctuations do not affect the LED lifespan or light output performance. This product is ideally suited for locations lacking grid power, where cable installation is difficult, or where enhanced lightning protection is required.
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | DC 12V ± 20% |
| Light Source | Imported High-Brightness LED |
| LED Lifespan | 80,000 hours |
| Power Consumption | < 10W |
| Flash Rate | 20–60 FPM (flashes per minute) |
| Effective Intensity | > 2,000 cd |
| Flash Color | Red / White |
| Mounting Pattern | PCD 170mm, 4 × Ø14mm holes |
| Ingress Protection | IP65 |
| Operating Temperature | -40°C to +70°C |
| Net Weight | 18 kg |
| Dimensions | 450 × 360 × 575 mm |
