Product Features 产品特性
- Suitable for low-intensity aviation obstruction warning applications适用于低强度航空障碍物警告应用
- Can also serve as airfield light and boundary light也可以作为机场灯和边界灯吗
- LED light source, energy-efficient and durableLED光源，节能耐用
- Steady-burning mode, stable operation稳燃模式，运行稳定
- Compact size, easy installation体积小，安装方便
- Certified with civil aviation special permit持有民航特别许可证
Applications 应用程序
- High-rise buildings 高层建筑
- Airport areas 机场地区
- Rooftop helipads 屋顶helipads
- Boundary warning illumination边界警告照明
- Low-altitude obstruction warning projects低空障碍物预警项目
Technical Specifications 技术规格
| Parameter 参数 | Details 细节 |
|---|---|

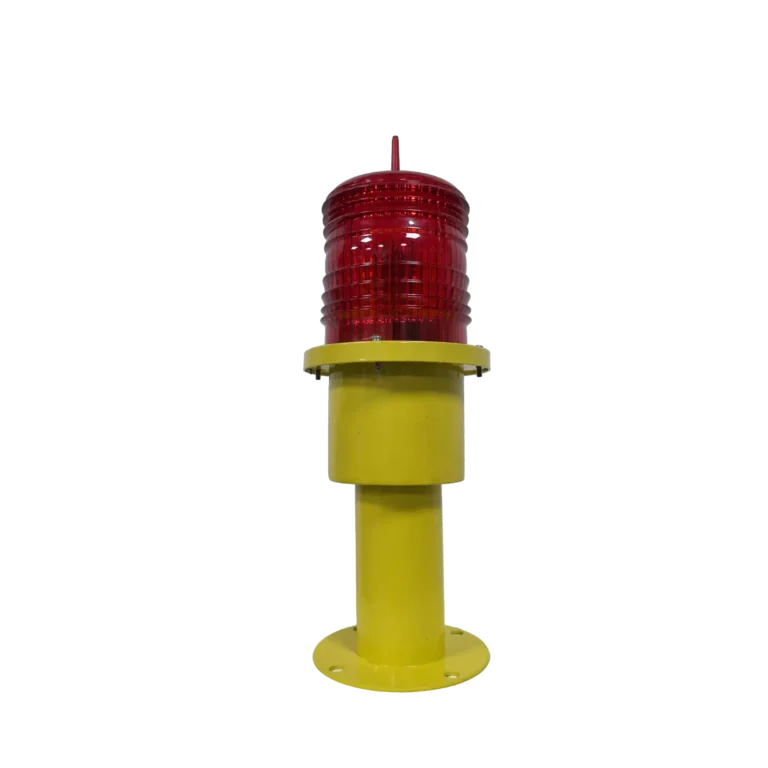

| Product Name 产品名称 | Low-Intensity Aviation Obstruction Light低强度航空障碍灯 |
| Product Model 产品模型 | XB-DB(L) XB-DB(左) |
| Light Source | LED |
| Input Voltage | AC 220V ± 20% |
| Average Power | ≤ 5W |
| Lighting Mode | Steady-burning |
| Effective Intensity (Night) | 10 cd |
| Beam Angle | 360° |
| Light Color | Red |
| Protection Rating | IP66 |
| Operating Temperature | -40°C to +55°C |
| Humidity Range | 0 to 95% |
| Wind Resistance | ≥ 80 m/s |
| Dimensions | 100 × 100 × 100 mm |
| Net Weight | 1.5 kg |
| Installation Method | Vertical outdoor mounting |
| Customization | To be supplemented |
| Warranty | 2 years |
| Lead Time | 3–10 days |
Installation This product is typically installed using vertical outdoor mounting, suitable for low-intensity warning applications on buildings, airports, and helipads.
Customization Detailed customization options are not yet specified. It is recommended to supplement with available options such as voltage variants, mounting accessories, and appearance configurations.
Lead Time & After-Sales
- Lead Time: 3–10 days
- Warranty: 2 years
- After-Sales Service: Product selection assistance, installation guidance, and technical support
Contact Us For detailed specifications or quotations on the XB-DB(L) low-intensity aviation obstruction light, please feel free to contact us.
