Product Features
- Suitable for tall structures between 90 m and 150 m in height
- Certified with civil aviation special permit
- Imported LED light source
- AC/DC dual power supply support
- Robust structure, built for long-term outdoor use
- Non-standard customization available
Applications
- High-rise buildings
- Tall chimneys
- Bridge towers
- Power transmission towers
- Communication towers
- Medium-intensity aviation warning projects
Technical Specifications
| Parameter | Details |
|---|---|

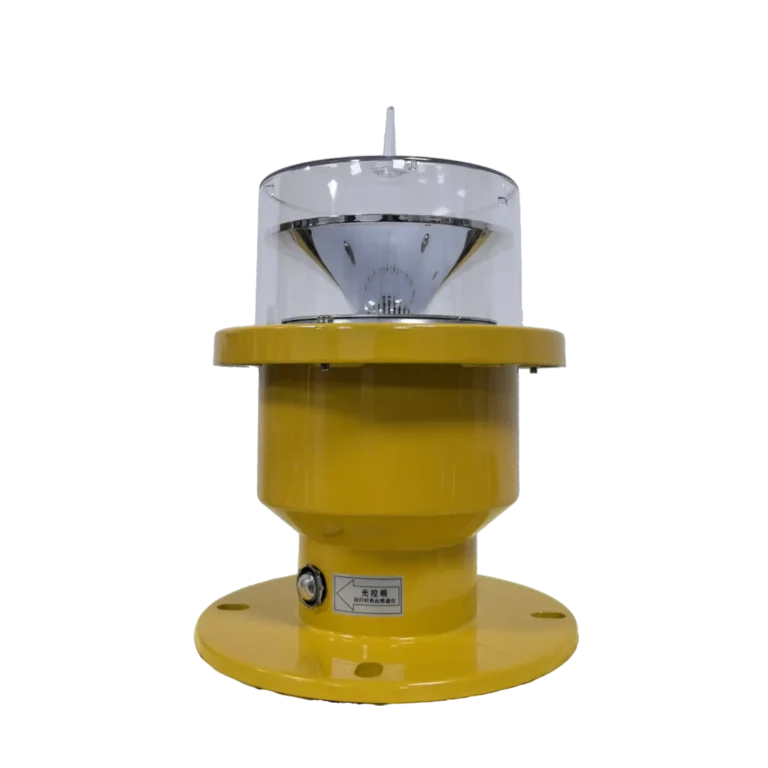

| Product Name | Type B Medium-Intensity Aviation Obstruction Light |
| Product Model | XB-ZB(L) |
| Light Source | LED |
| Input Voltage | AC 220V ± 20%, DC 24V ± 10% |
| Average Power | ≤ 6W |
| Lighting Mode | Red flashing |
| Flash Rate | 20–60 flashes/min |
| Effective Intensity (Night) | 2000 cd ± 25% |
| Beam Angle | 360° |
| Light Color | Red |
| Protection Rating | IP66 |
| Operating Temperature | -40°C to +55°C |
| Humidity Range | 0 to 95% |
| Wind Resistance | ≥ 80 m/s |
| Dimensions | 200 × 200 × 200 mm |
| Net Weight | 4 kg |
| Installation Method | Vertical outdoor mounting; wall-mounted with bracket also available |
| Customization | Available per project requirements |
| Warranty | 2 years |
| Lead Time | 3–10 days |
Installation This product is typically installed using vertical outdoor mounting. Wall-mounted installation with a bracket is also available depending on site conditions. Indoor installation solutions can be customized upon request.
Customization Customization of installation methods and selected configurations is available based on project requirements.
Lead Time & After-Sales
- Lead Time: 3–10 days
- Warranty: 2 years
- After-Sales Service: Product selection assistance, installation guidance, and technical support
Contact Us For detailed specifications, selection guidance, or quotations on the XB-ZB(L), please feel free to contact us.
